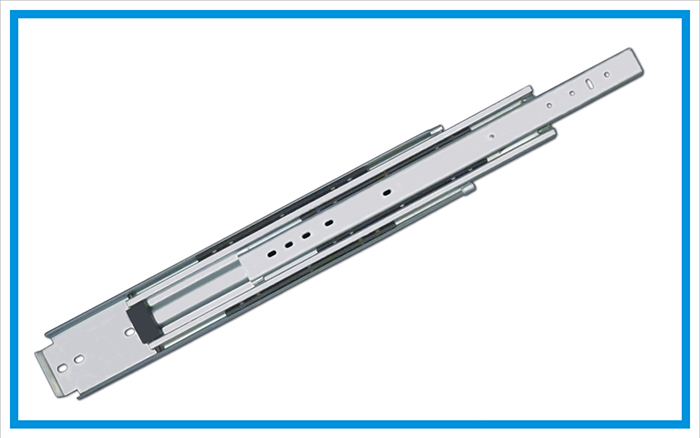

Extra heavy duty full extension drawer slide-7688
Application
This slide is designed for use in a variety of heavy duty storage application.
- Heavy lateral filing cabinets
- Large storage drawers
- Large pantry pull-outs
- Wide lateral files drawers
- Vehicular storage drawers
Specifications
- Profile : Side space - 19mm(0.75") ; Height - 76.2mm(3")
- Extension : Full extension travel
- Load rating:
Load ratings are dependent upon application and usage
- Moderate use 500lbs(227kgs)/pair
- Frequent use 400lbs(182kgs)/pair
- Mobile equipment(Vehicular) 300lbs(136kgs)/pair
- Flat-mount 150lbs(68kgs)/pair
- Size : Customized length from 10"(254mm) - 60"(1524mm)
- Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED)
- Material: Work hardened cold rolled steel
Load ratings are dependent upon application and usage
- Moderate use 500lbs(227kgs)/pair
- Frequent use 400lbs(182kgs)/pair
- Mobile equipment(Vehicular) 300lbs(136kgs)/pair
- Flat-mount 150lbs(68kgs)/pair
Features
- Option : lock-out, lock-in and lock-out.
- Mounting by side or flat.
- Non-disconnect.
- Silenced.
